PRODUCT DESCRIPTION

301 stainless steel pipe is a metastable austenitic stainless steel that has a complete austenitic structure under full solid solution conditions. 301 is the steel type that is most easily strengthened by cold deformation among stainless steels. The strength and hardness of the steel can be improved through cold deformation processing while retaining sufficient plasticity and toughness. In addition, this steel has good rust resistance under atmospheric conditions. 301 is mostly used in the cold working state for equipment parts that can withstand higher loads, reducing the weight of the equipment and making it rust-free. In addition, this steel is inclined to work hardening when impacted by external forces and can absorb more impact energy, providing more reliable safety protection for equipment and personnel. However, 301 stainless steel pipe has poor corrosion resistance in chemical media such as acid, alkali and salt, so it is not often used in harsh corrosive environments.


Product Parameters

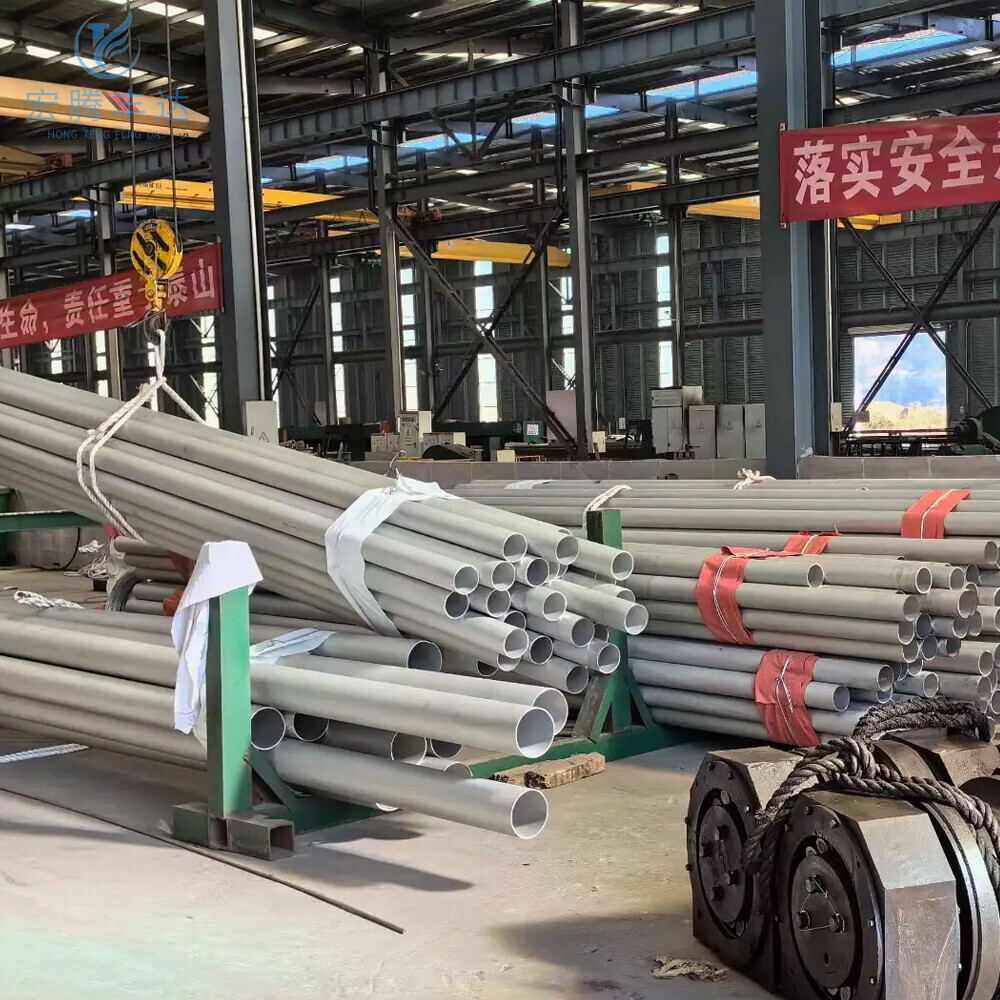

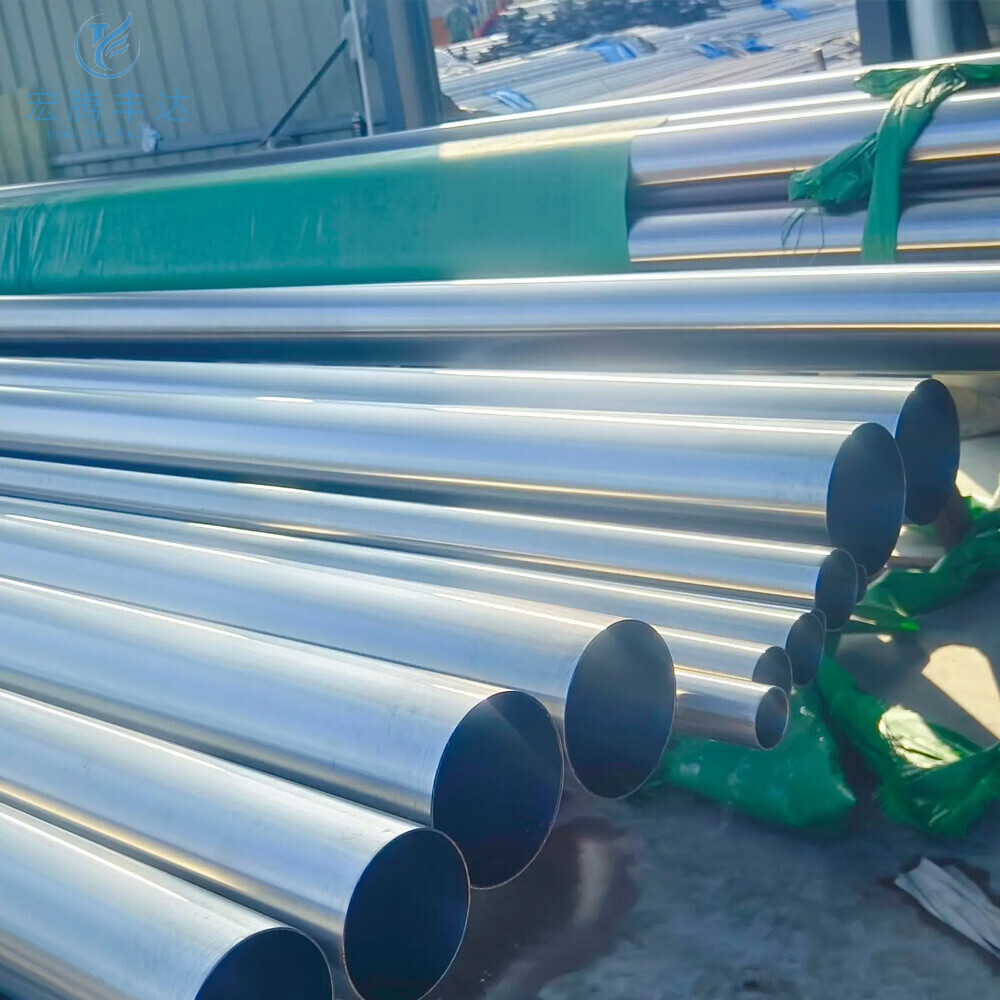

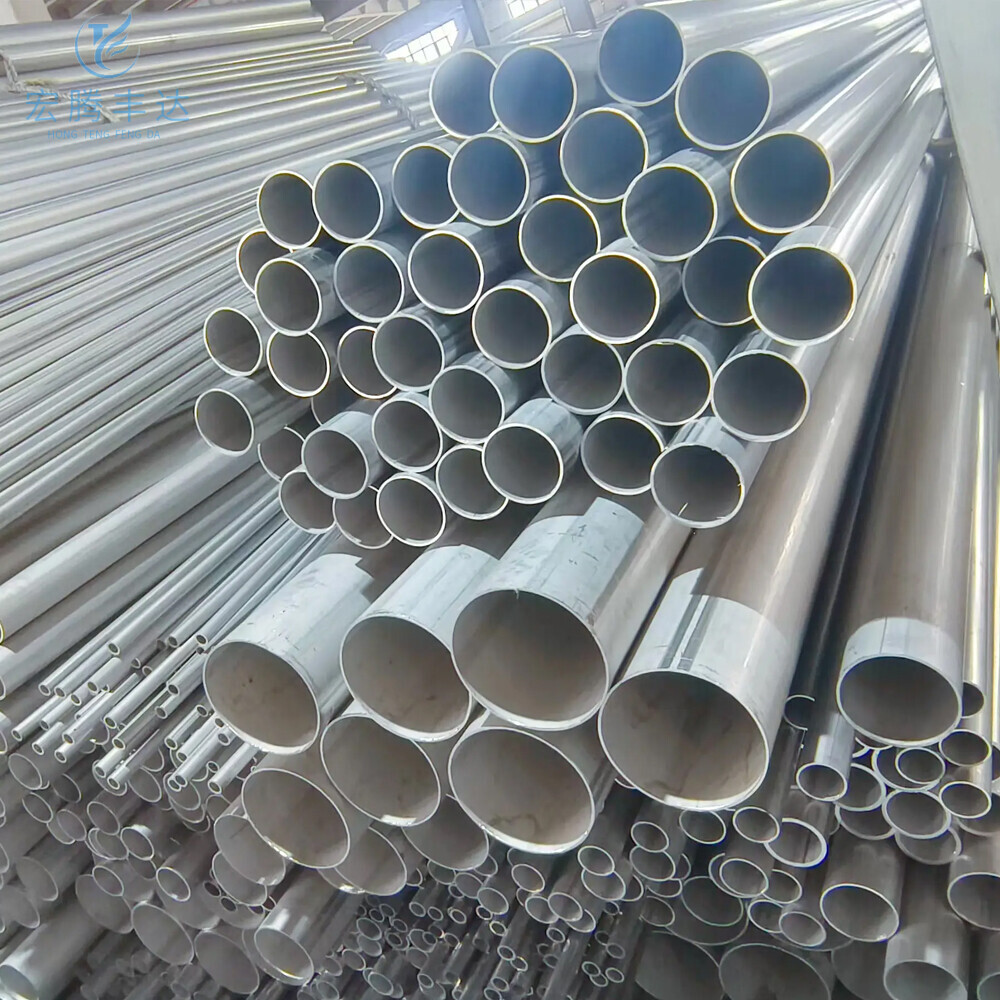

Product Name301 Stainless Steel Pipe
TypeSteel Pipe
Outer diameterRound Tube4mm-200mm
Square Tube10*10mm-100*100mm
Rectangular Tube10*20mm-50*100mm
Wall Thickness0.6mm-6.0mm
Length1-6 meters, Length can be customized
StandardASTM, AISI, JIS, GB, DIN, EN, etc.
SurfaceBlack, Bright Polished, Rough Turning, Matt Surface Treatment, No. 4. BA, etc.
Scope of ApplicationCommon applications for stainless steel pipes include food processing,Textile operations, Breweries, Water treatment plants, Oil and gas processing,Fertilizers and pesticides, Chemical applications, Construction, Pharmaceuticals, Auto parts, etc.
CertificateISO, SGS, BV, etc.
Production TechnologyHot Rolling, Cold Rolling
Edge ProcessingEdging, Trimming



Chemical Composition

CSiMnCrNiSP
≤ 0.15≤ 1.0≤ 2.016.0~18.06.0~8.0≤ 0.03≤ 0.045



Mechanical Properties

Tensile Strength Kb (MPa)Yield Strength σ0.2 (MPa)Elongation D5 (%)Hardness
≥ 520≥ 205≥ 40≤ 187HB ;≤ 90HRB;≤ 200HV



Physical Performance

Density(g/cm³)Modulus of Elasticity(Gpa)Coefficient of Thermal Expansion(10-6/°C)Coefficient of Thermal Conductivity(W/m*K)Resistivity(μohm.in)
7.8819316.916.227.4
