PRODUCT DESCRIPTION

254SMO is a highly corrosion-resistant austenitic stainless steel, mainly used in environments of high-concentration chloride ion and highly corrosive media, such as seawater, salt water, wet chlorine, acetic acid, formic acid, acetic acid, hydrochloric acid, hypochlorous acid, sulfuric acid, nitric acid, etc.. On the other hand, it also possesses good processing performance and welding performance. Besides, it is very resistant to pitting and crevice corrosion as a result of its high content of chromium and molybdenum. As this special stainless steel is a high-alloy material, the manufacturing process is quite complex. Generally, only traditional processes are adopted to manufacture this special stainless steel, such as pouring, forging, rolling, etc.


Product Parameters

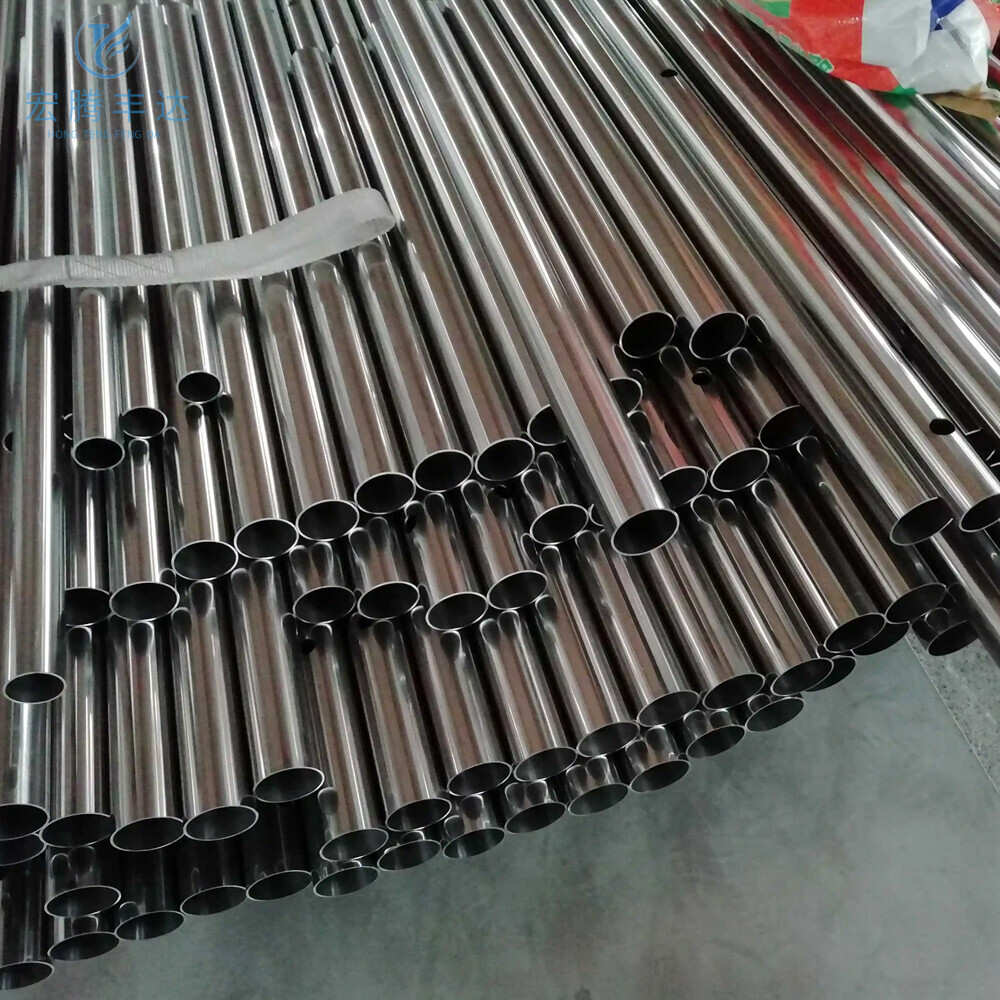

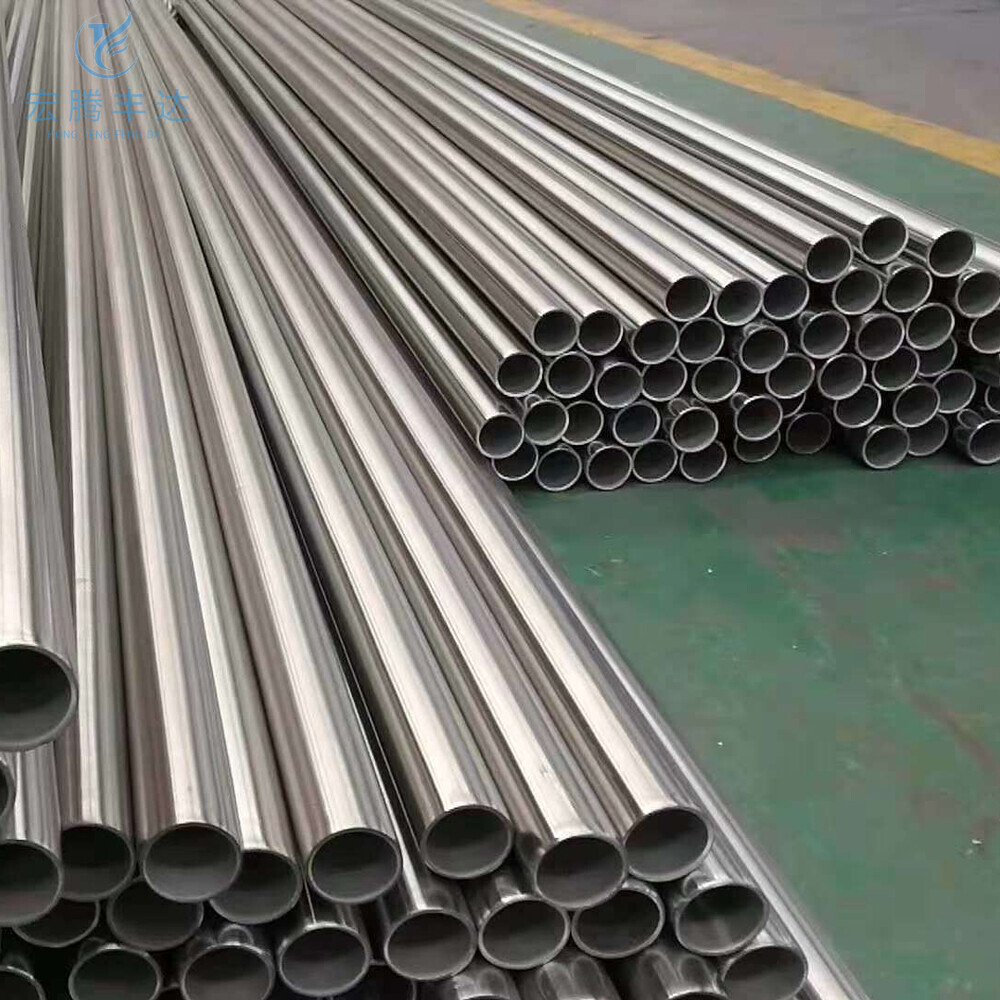

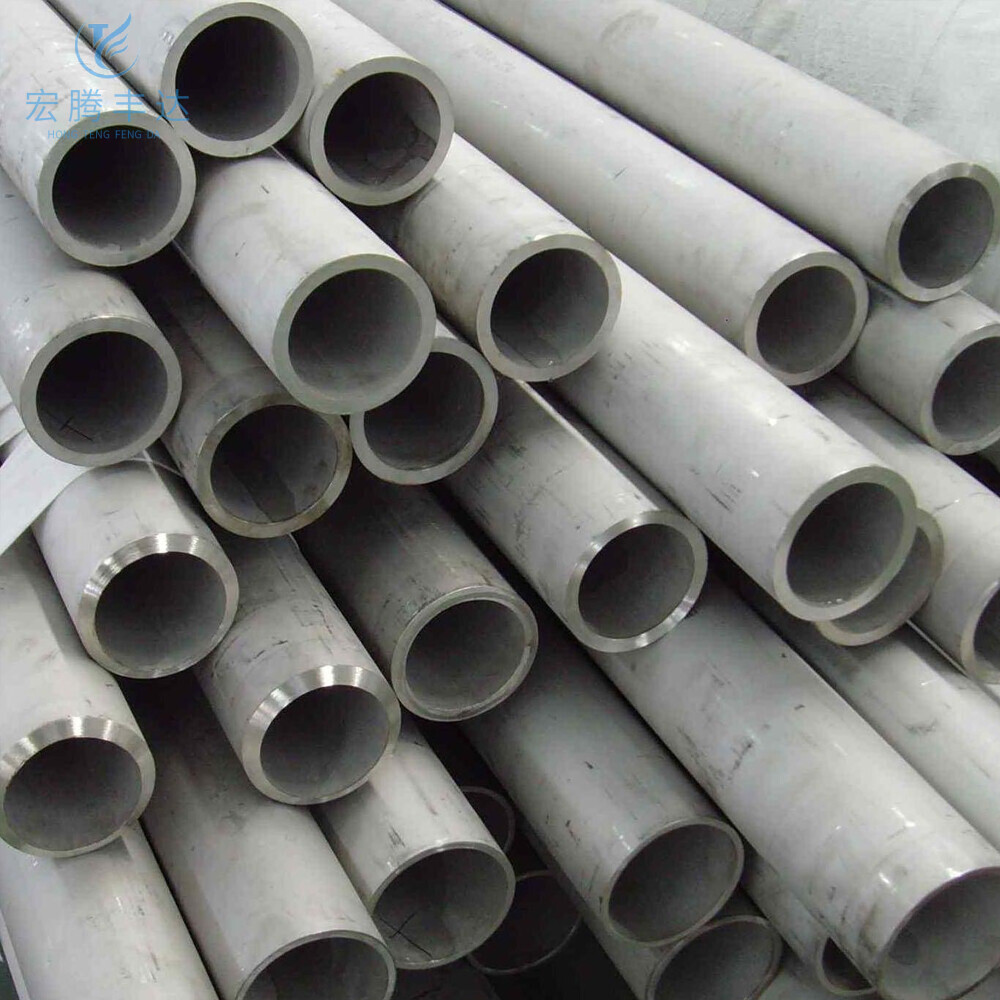

Product Name254SMO Stainless Steel Pipe
TypeSteel Pipe
Outer diameterRound Tube4mm-200mm
Square Tube10*10mm-100*100mm
Rectangular Tube10*20mm-50*100mm
Wall Thickness0.6mm-6.0mm
Length1-6 meters, Length can be customized
StandardASTM, AISI, JIS, GB, DIN, EN, etc.
SurfaceBlack, Bright Polished, Rough Turning, Matt Surface Treatment, No. 4. BA, etc.
Scope of ApplicationCommon applications for stainless steel pipes include food processing,Textile operations, Breweries, Water treatment plants, Oil and gas processing,Fertilizers and pesticides, Chemical applications, Construction, Pharmaceuticals, Auto parts, etc.
CertificateISO, SGS, BV, etc.
Production TechnologyHot Rolling, Cold Rolling
Edge ProcessingEdging, Trimming



Chemical Composition

CSiMnCrNiMoSP
≤ 0.02≤ 0.8≤1.019.5~20.517.5~18.56.0~6.5≤ 0.01≤ 0.03



Mechanical Properties

Tensile Strength Kb (MPa)Yield Strength σ0.2 (MPa)Elongation D5 (%)Hardness
≥680≥300≥45≤ 180HRB



Physical Performance

Density(g/cm³)Modulus of Elasticity(Gpa)Coefficient of Thermal Expansion(10-6/°C)Coefficient of Thermal Conductivity(W/m*K)Resistivity(ΜΩ. cm)
8.019516.014.085
