Rails are the main components of railway tracks. Its function is to guide the wheels of the rolling stock to move forward, bear the huge pressure of the wheels, and transmit them to the sleepers. The rails must provide a continuous, smooth and least drag rolling surface for the wheels. In electrified railways or automatic blocking sections, the rails can also be used as track circuits.

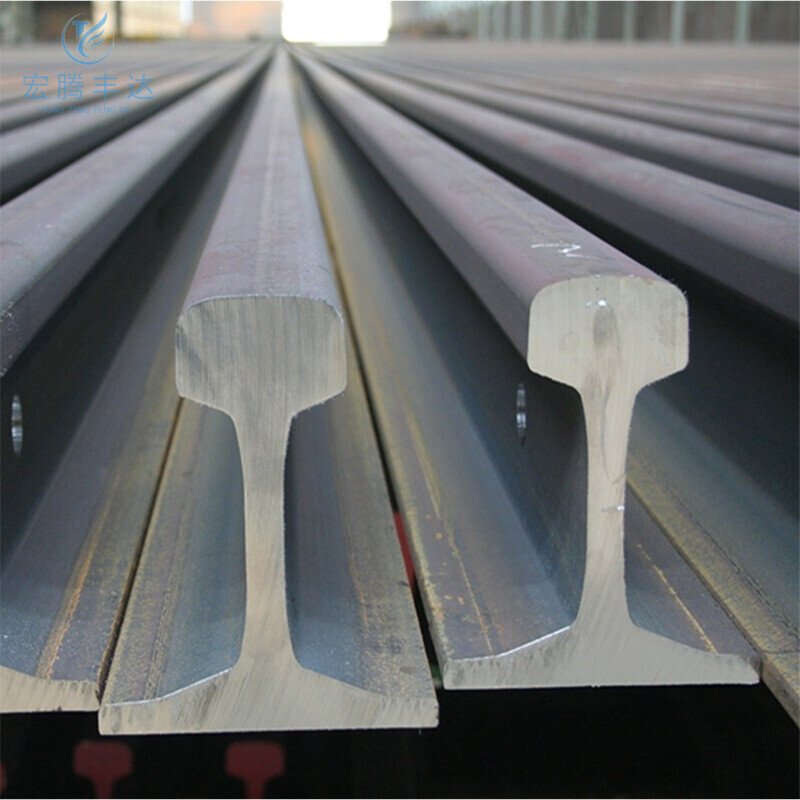

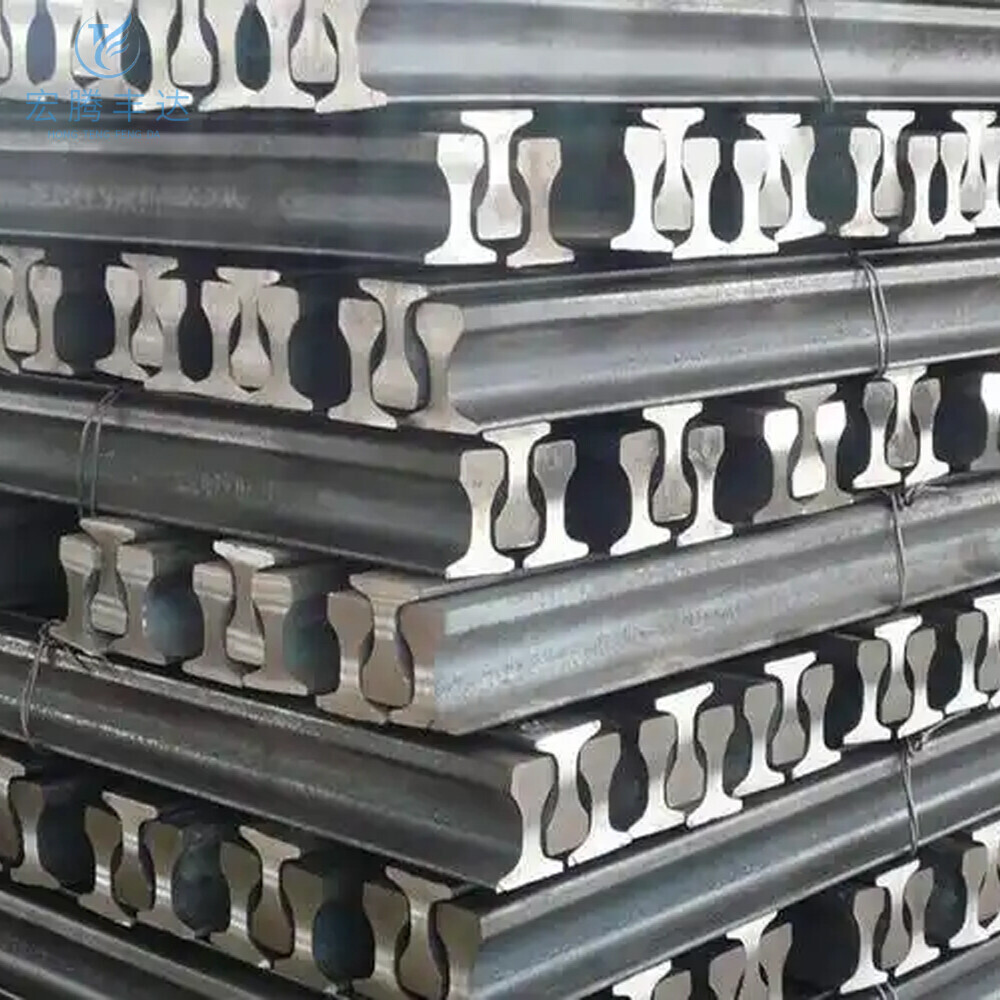

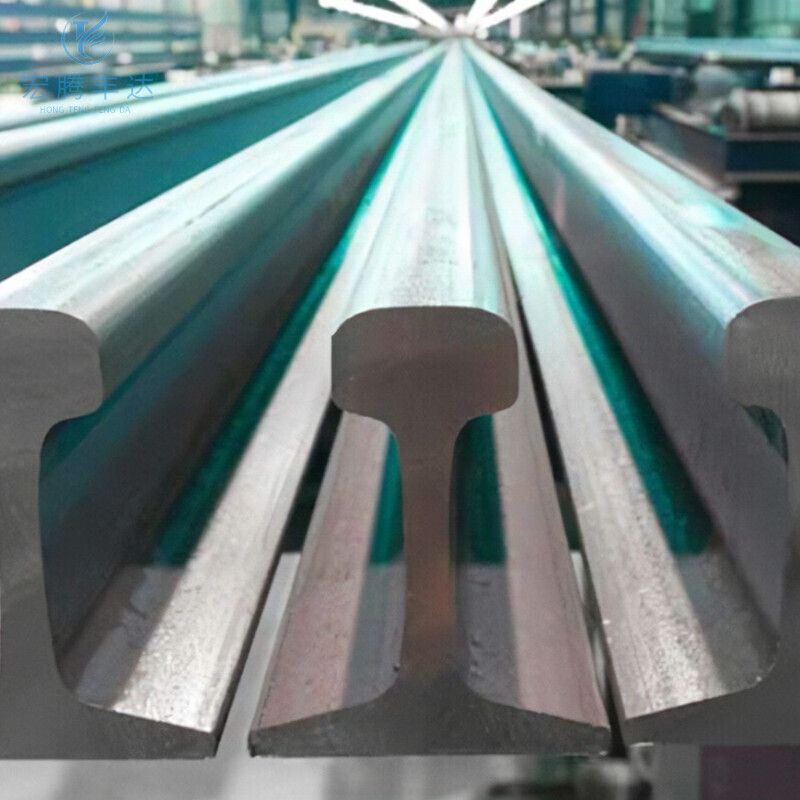

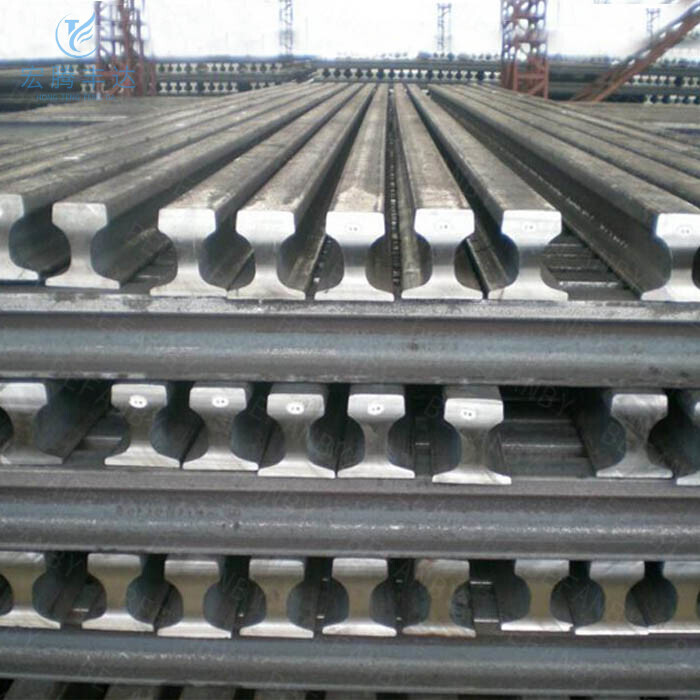

| Product Name | Steel Rail |
| Standard: | ASTM GB JIS DIN BIS EN AISI, GB ASTM GB DIN JIS BS |
| Grade: | U74、U71Mn、PD2、PD3 and BNbRE |
| Technique:: | Hot Rollled |
| Material | Carbon steel or medium manganese steel l |
| Certafication | ISO9001-2008;ISO14001:2004 |
| Length | 12m-30m or as customer's actual request . |
| Thickness | 3mm - 24mm |
| Rail Heigth | 134-170mm |
| Head Width | 68-73mm |
| Bottom Width | 114-150mm |
| Surface | Oil,Black, Galvanized, Painted |
| Place of Origin | Shandong, China |
| Tolerance | ±1% |
| Application | Railway Rail |
| Application scenarios（Position） | Bridge Railings / Handrails, Deck Railings / Handrails |
| Payment Term | T/T or L/C at sight |
| Price term | FOB,FCA,CIF,CFR,DDU,etc |
| Delivery Time | 15-20 days |
| Packaging Details | bulk packing or according to customers' request |
| Advantages | 1. Reasonable price with excellent quality2. Abundant stock and prompt delivery3. Rich supply and export experience, 24 Hours sincere service |
| Name of Commodity | Specificaton | Materials |
| Light Rail | 4kg/m | Q235 |
| 8kg/m |
| 12kg/m |
| 15kg/m | Q235/55Q/50Q |
| 18kg/m |
| 22kg/m |
| 24kg/m |
| 30kg/m |
| Heavy Rail | 38kg/m | U71Mn/U71/45Mn |
| 43kg/m |
| 50kg/m |
| Crane Rail | QU70 | U71Mn |
| QU80 |
| QU100 |
| QU120 |
| China Standard Light Rail (GB11264-89) |
| Size | Dimension (MM) | Weight | Material | Length |
| Head Width | Height | Base Width | Web Thickness | KG/M | M/PCS |
| GB9KG | 32.1 | 63.5 | 63.5 | 5.9 | 8.94 | Q235 | 6-9 |
| GB12KG | 38.1 | 69.85 | 69.85 | 7.54 | 12.2 | Q235/55Q | 6-12 |
| GB15KG | 42.86 | 79.37 | 79.37 | 8.33 | 15.2 |
| GB22KG | 50.8 | 93.66 | 93.66 | 10.72 | 22.3 | Q235/55Q | 6-12 |
| GB30KG | 60.33 | 107.95 | 107.95 | 12.3 | 30.1 |
| China Standard Light Rail (YB222-63) |
| Size | Dimension | Weight | Material | Length |
| Head Width | Height | Base Width | Web Thickness | KG/M | M/PCS |
| GB8KG | 25 | 65 | 54 | 7 | 8.42 | Q235 | 6-12 |
| GB18KG | 40 | 90 | 80 | 10 | 18.06 | Q235/55Q |
| GB24KG | 51 | 107 | 92 | 10.9 | 24.46 |
| China Standard Heavy Steel Rail (GB2585-2007) |
| Size | Dimension | Weight | Material | Length |
| Head Width | Height | Base Width | Web Thickness | KG/M | M/PCS |
| GB38KG | 68 | 134 | 114 | 13 | 38.733 | U71MN/50MN | 10-12.5 |
| GB43KG | 70 | 140 | 114 | 14.5 | 44.653 |
| GB50KG | 70 | 152 | 132 | 15.5 | 51.514 | U71MN/ U75V | 12.5-100 |
| GB60KG | 73 | 176 | 150 | 16.5 | 60.08 |
| GB75KG | 75 | 192 | 150 | 20 | 74.6 |
| China Standard Crane Rail YB/T5055-2014 |
| Size | Dimension | Weight | Material | Length |
| Head Width | Height | Base Width | Web Thickness | KG/M | M/PCS |
| QU70 | 70 | 120 | 120 | 28 | 52.8 | U71Mn/50Mn | 12 |
| QU80 | 80 | 130 | 130 | 32 | 63.69 |
| QU100 | 100 | 150 | 150 | 38 | 88.96 |
| QU120 | 120 | 170 | 170 | 44 | 118.1 |
| UIC860 Standard Steel Rail |
| Size | Dimension | Weight | Material | Length |
| Head Width | Height | Base Width | Web Thickness | KG/M | M/PCS |
| UIC54 | 70 | 159 | 140 | 16 | 54.43 | 900A/U71MN | 12-25 |
| UIC60 | 74.3 | 172 | 150 | 16.5 | 60.21 |
| EN 13674.1 Standard Steel Rails |
| 54E1 | 72.22 | 159 | 140 | 16 | 54.77 | R260,R350HT,
R350LHT | 12-25 |
| 60E1 | 72 | 172 | 150 | 16.5 | 60.21 |
| 60E2 | 72 | 172 | 150 | 16.5 | 60.03 |
| AREMA Standard Steel Rail |
| Size | Dimension | Weight | Material | Length |
| Head Width | Height | Base Width | Web Thickness | KG/M | M/PCS |
| ASCE25 | 38.1 | 69.85 | 69.85 | 7.54 | 12.4 | Q235 | 6-12 |
| ASCE30 | 42.86 | 79.38 | 79.38 | 8.33 | 14.88 | Q235/55Q |
| ASCE40 | 47.62 | 88.9 | 88.9 | 9.92 | 19.84 |
| ASCE60 | 60.32 | 107.95 | 107.95 | 12.3 | 29.76 |
| ASCE75 | 62.71 | 122.24 | 122.24 | 13.49 | 37.2 | 900A/ U71MN | 12 |
| ASCE85 | 65.09 | 131.76 | 131.76 | 14.29 | 42.17 |
| ASCE90 | 65.09 | 142.88 | 130.18 | 14.29 | 44.65 |
| ASCE115 | 69.06 | 168.28 | 139.7 | 15.88 | 56.9 | SS, 900A | 11.89-25 |
| ASCE136 | 74.61 | 185.74 | 152.4 | 17.46 | 67.41 |
| DIN536 Crane Rail |
| Size | Dimension | Weight | Material | Length |
| Head Width | Height | Base Width | Web Thickness | KG/M | M/PCS |
| A45 | 45 | 55 | 125 | 24 | 22.1 | 50MN, U71MN,900A, | 12 |
| A55 | 55 | 65 | 150 | 31 | 31.8 |
| A65 | 65 | 75 | 175 | 38 | 43.1 |
| A75 | 75 | 85 | 200 | 45 | 56.2 |
| A100 | 100 | 95 | 200 | 60 | 74.3 |
| A120 | 120 | 105 | 220 | 72 | 100 |
| A150 | 150 | 150 | 220 | 80 | 150.3 |
| JIS E1103/1101 STANDARD |
| Size | Dimension | Weight | Material | Length |
| Head Width | Height | Base Width | Base Width | KG/M | M/PCS |
| JIS 15KG | 42.86 | 79.37 | 79.37 | 8.33 | 15.2 | Q235, 55Q | 6-11 |
| JIS 22KG | 50.8 | 93.66 | 93.66 | 10.72 | 22.3 |
| JIS 30A | 60.33 | 107.95 | 107.95 | 12.3 | 30.1 |
| JIS 37A | 62.71 | 122.24 | 122.24 | 13.49 | 37.2 | 50MN, U71MN,900A | 10-12 |
| JIS 50N | 65 | 153 | 127 | 15 | 50.4 |
| CR73 | 100 | 135 | 140 | 32 | 73.3 |
| CR100 | 120 | 150 | 155 | 39 | 100.2 |
