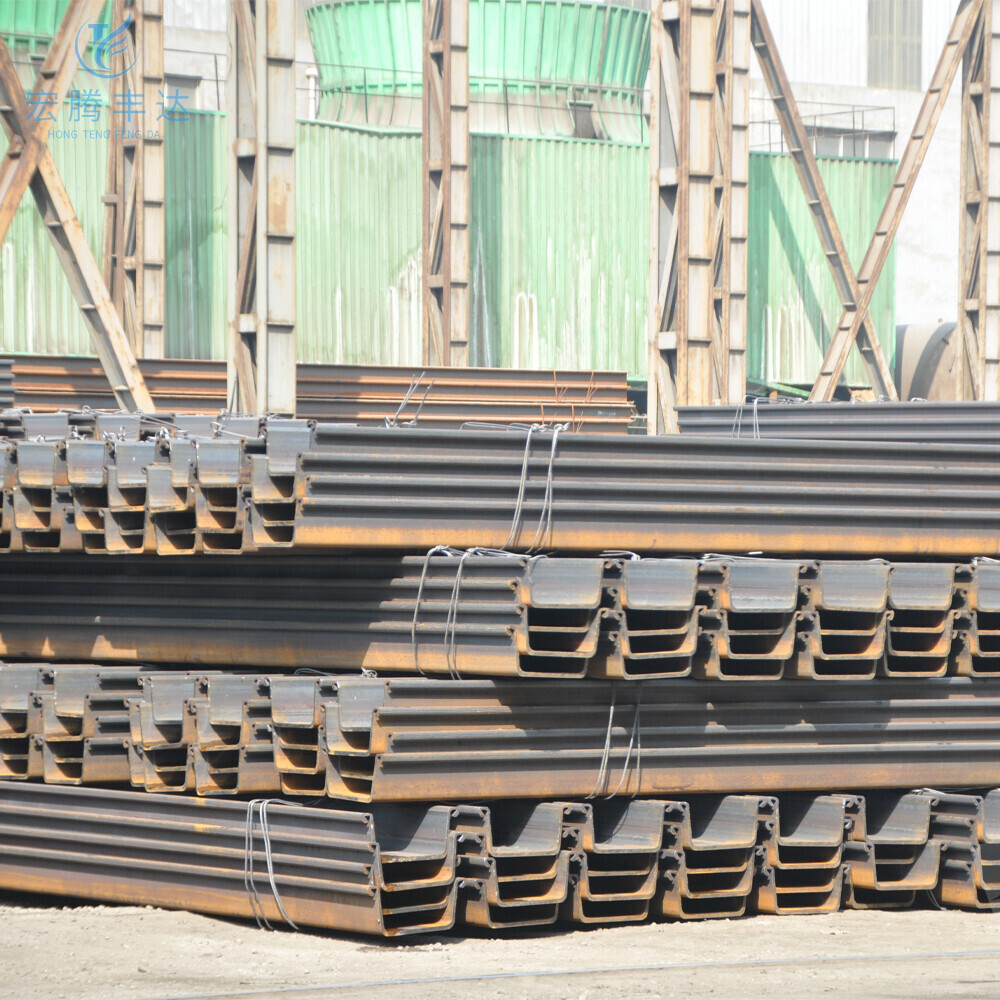

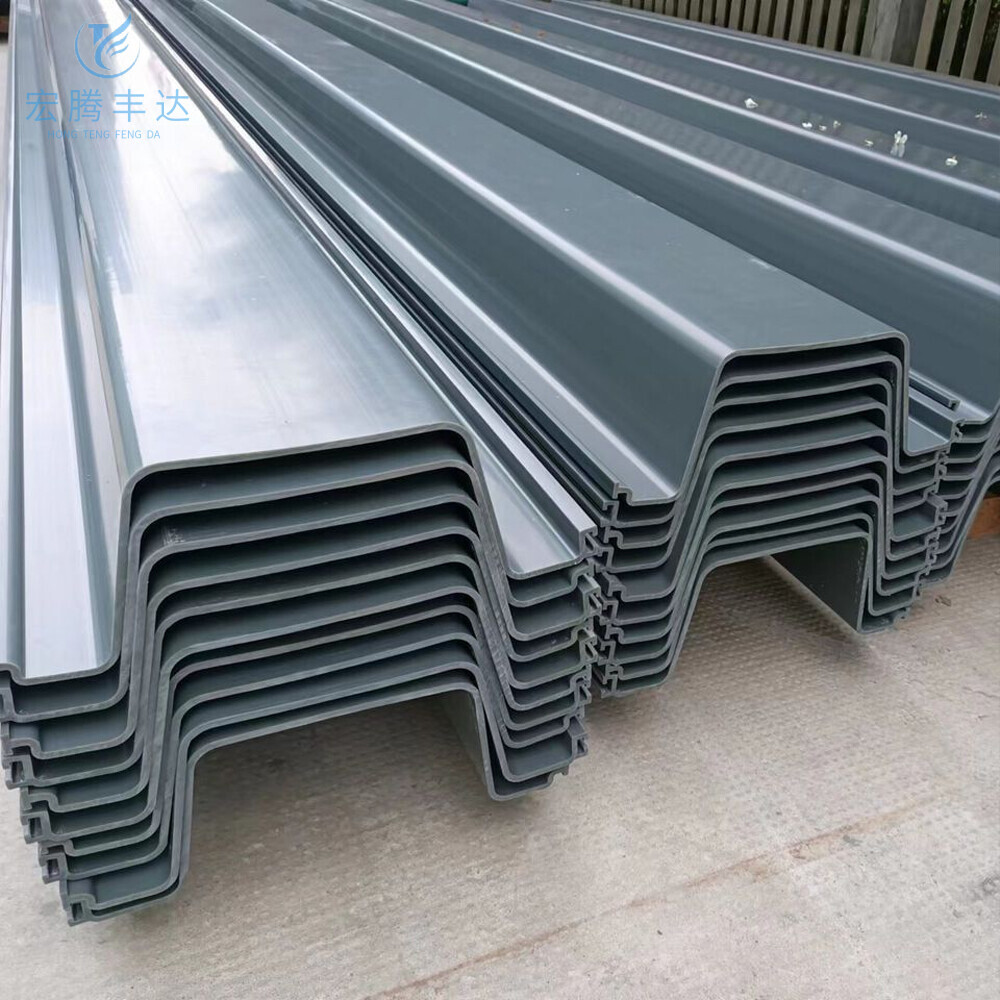

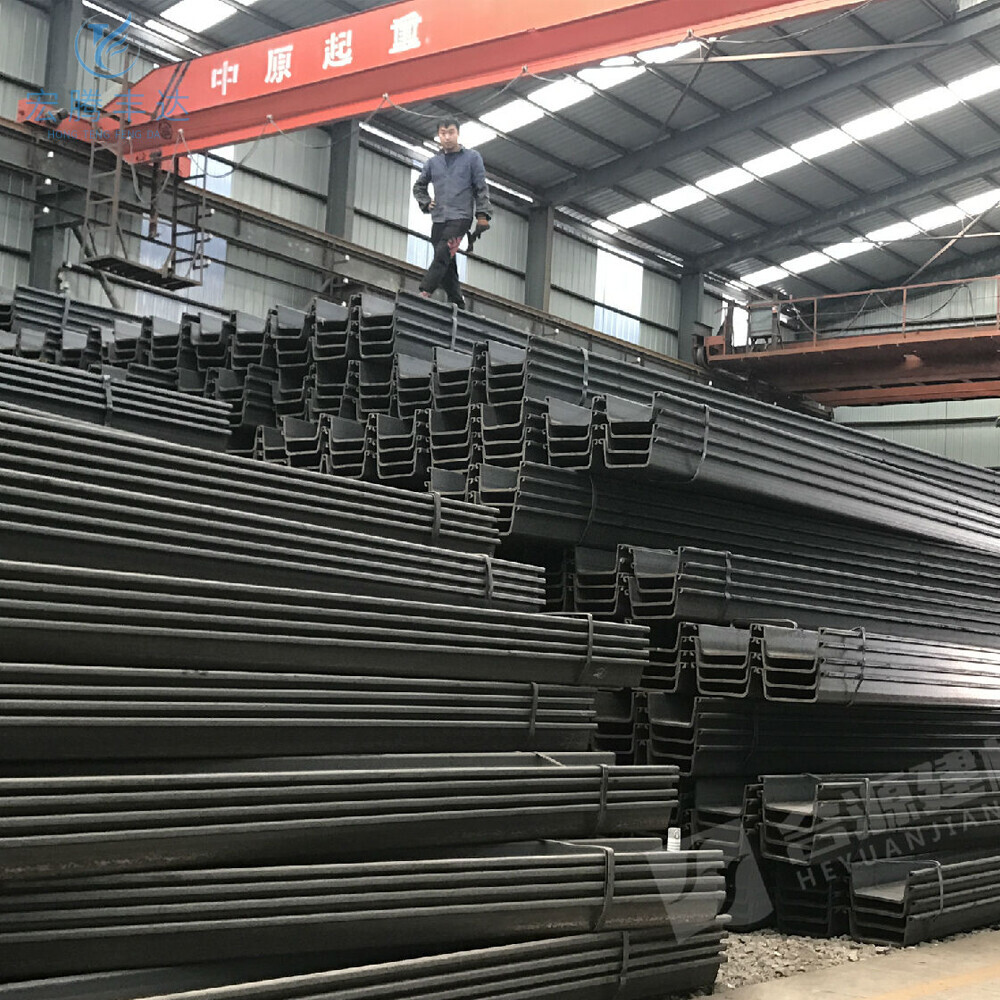

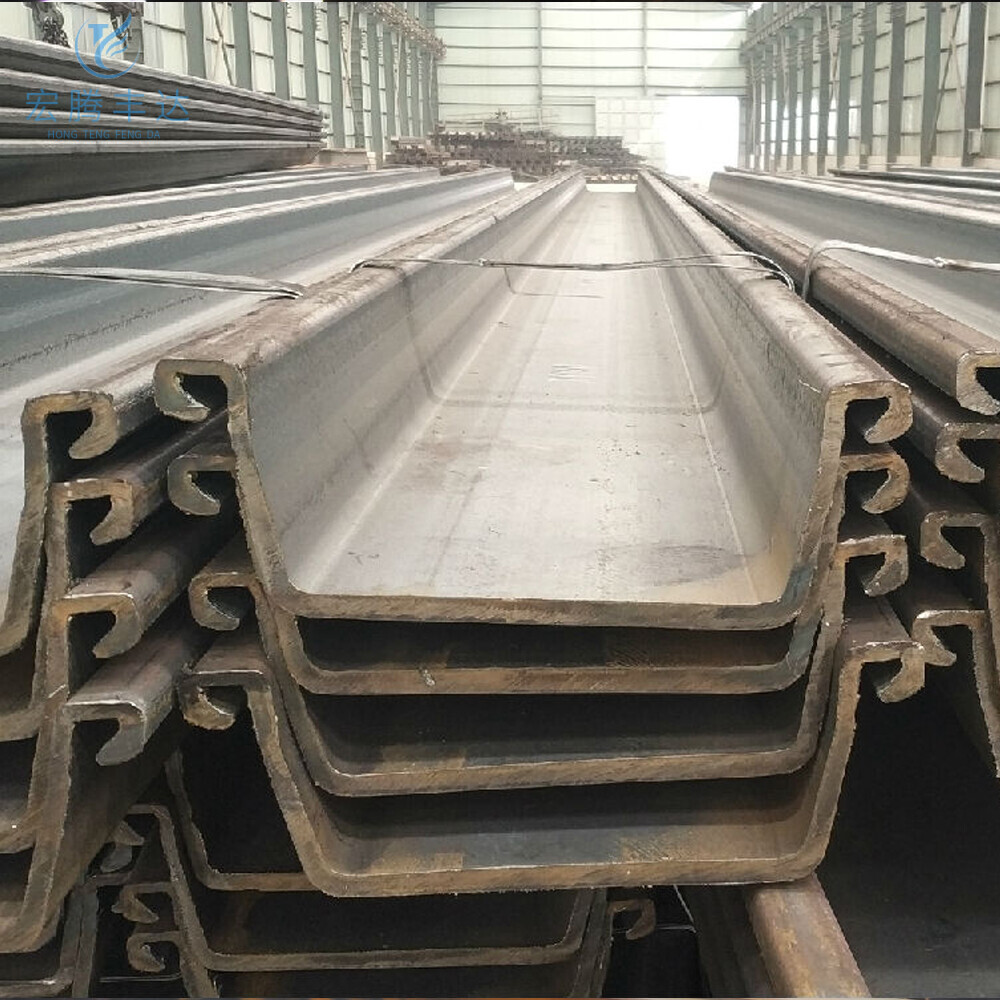

Steel sheet pile is a type of steel with a locking mouth, and its cross-section includes straight plate shape, groove shape, and Z-shape, with various sizes and interlocking forms. Common ones include Larson style, Lakwanna style, etc. Its advantages are: high strength, easy to penetrate into hard soil layers; Construction can be carried out in deep water, and if necessary, diagonal supports can be added to form a cage. Good waterproof performance; It can be assembled into various shapes of cofferdams as needed and can be reused multiple times, making it widely used.
| SPECIFICATIONS FOR SHEET PILE |
| 1. Size | 1) 400*100*10.5mm - 600*210*18mm |
| 2)Wall Thickness:10.5-27.6MM |
| 3) U type sheet pile |
| 2. Standard: | JIS A5523, JIS A5528 |
| 3.Material | SY295, SY390, S355 |
| 4. Location of our factory | Shandong,China |
| 5. Usage: | 1)earth-retaining wall |
| 2)structure construction |
| 3)fence |
| 6. Coating: | 1) Bared
2) Black Painted (varnish coating)
3) galvanized |
| 7. Technique: | hot rolled |
| 8. Type: | U type sheet pile |
| 9. Section Shape: | U |
| 10. Inspection: | Client inspection or inspection by 3rd party. |
| 11. Delivery: | Container, Bulk Vessel. |
| 12. About Our Quality: | 1) No damage, no bent
2) Free for oiled&marking
3) All goods can be checked by third party inspection before shipment |
| Type | Width | Height | Thickness | Sectional area | Weight per pile | Weight per wall | Moment of Inertia | Modulus of section |
| mm | mm | mm | Cm2/m | Kg/m | Kg/ m2 | Cm4/m | Cm3/m |
| WRU7 | 750 | 320 | 5 | 71.3 | 42.0 | 56.0 | 10725 | 670 |
| WRU8 | 750 | 320 | 6 | 86.7 | 51.0 | 68.1 | 13169 | 823 |
| WRU9 | 750 | 320 | 7 | 101.4 | 59.7 | 79.6 | 15251 | 953 |
| WRU10-450 | 450 | 360 | 8 | 148.6 | 52.5 | 116.7 | 18268 | 1015 |
| WRU11-450 | 450 | 360 | 9 | 165.9 | 58.6 | 130.2 | 20375 | 1132 |
| WRU12-450 | 450 | 360 | 10 | 182.9 | 64.7 | 143.8 | 22444 | 1247 |
| WRU11-575 | 575 | 360 | 8 | 133.8 | 60.4 | 105.1 | 19685 | 1094 |
| WRU12-575 | 575 | 360 | 9 | 149.5 | 67.5 | 117.4 | 21973 | 1221 |
| WRU13-575 | 575 | 360 | 10 | 165.0 | 74.5 | 129.5 | 24224 | 1346 |
| WRU11-600 | 600 | 360 | 8 | 131.4 | 61.9 | 103.2 | 19897 | 1105 |
| WRU12-600 | 600 | 360 | 9 | 147.3 | 69.5 | 115.8 | 22213 | 1234 |
| WRU13-600 | 600 | 360 | 10 | 162.4 | 76.5 | 127.5 | 24491 | 1361 |
| WRU18- 600 | 600 | 350 | 12 | 220.3 | 103.8 | 172.9 | 32797 | 1874 |
| WRU20- 600 | 600 | 350 | 13 | 238.5 | 112.3 | 187.2 | 35224 | 2013 |
| WRU16 | 650 | 480 | 8. | 138.5 | 71.3 | 109.6 | 39864 | 1661 |
| WRU 18 | 650 | 480 | 9 | 156.1 | 79.5 | 122.3 | 44521 | 1855 |
| WRU20 | 650 | 540 | 8 | 153.7 | 78.1 | 120.2 | 56002 | 2074 |
| WRU23 | 650 | 540 | 9 | 169.4 | 87.3 | 133.0 | 61084 | 2318 |
| WRU26 | 650 | 540 | 10 | 187.4 | 96.2 | 146.9 | 69093 | 2559 |
| WRU30-700 | 700 | 558 | 11 | 217.1 | 119.3 | 170.5 | 83139 | 2980 |
| WRU32-700 | 700 | 560 | 12 | 236.2 | 129.8 | 185.4 | 90880 | 3246 |
| WRU35-700 | 700 | 562 | 13 | 255.1 | 140.2 | 200.3 | 98652 | 3511 |
| WRU36-700 | 700 | 558 | 14 | 284.3 | 156.2 | 223.2 | 102145 | 3661 |
| WRU39-700 | 700 | 560 | 15 | 303.8 | 166.9 | 238.5 | 109655 | 3916 |
| WRU41-700 | 700 | 562 | 16 | 323.1 | 177.6 | 253.7 | 117194 | 4170 |
| WRU 32 | 750 | 598 | 11 | 215.9 | 127.1 | 169.5 | 97362 | 3265 |
| WRU 35 | 750 | 600 | 12 | 234.9 | 138.3 | 184.4 | 106416 | 3547 |
| WRU 38 | 750 | 602 | 13 | 253.7 | 149.4 | 199.2 | 115505 | 3837 |
| WRU 40 | 750 | 598 | 14 | 282.2 | 166.1 | 221.5 | 119918 | 4011 |
| WRU 43 | 750 | 600 | 15 | 301.5 | 177.5 | 236.7 | 128724 | 4291 |
| WRU 45 | 750 | 602 | 16 | 320.8 | 188.9 | 251.8 | 137561 | 4570 |
