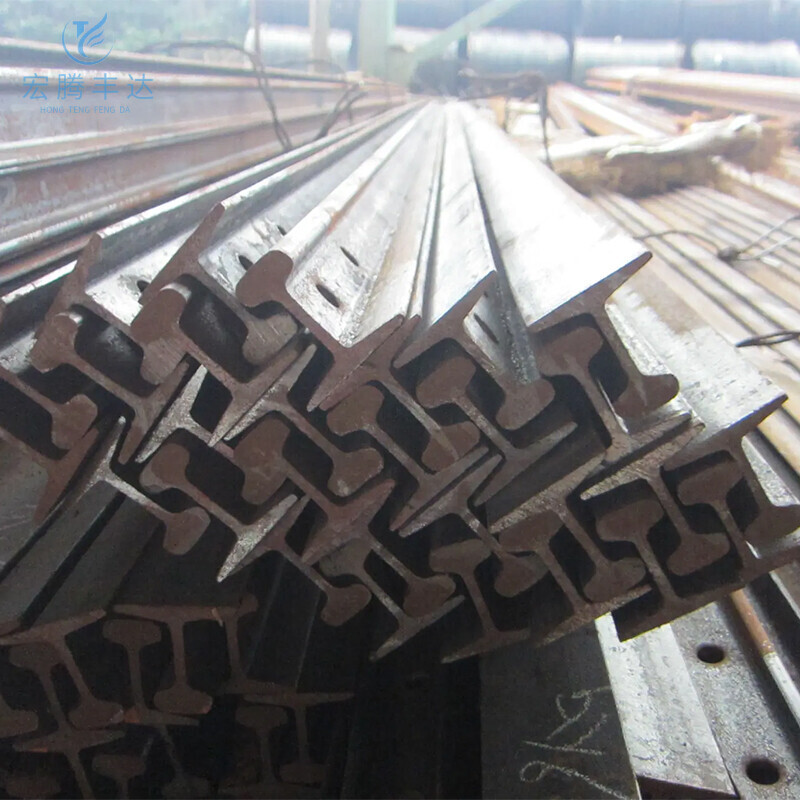

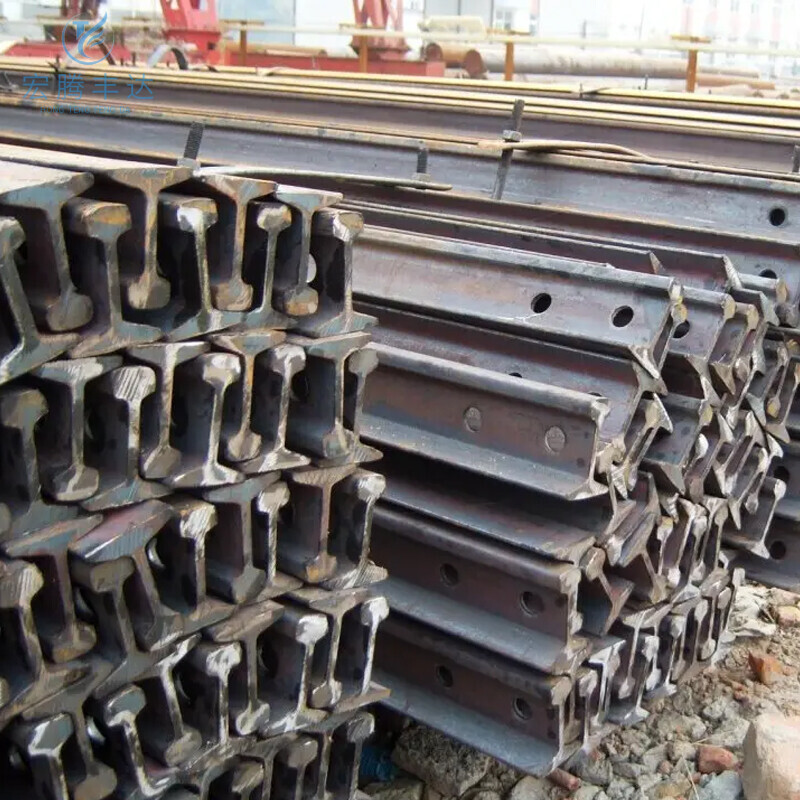

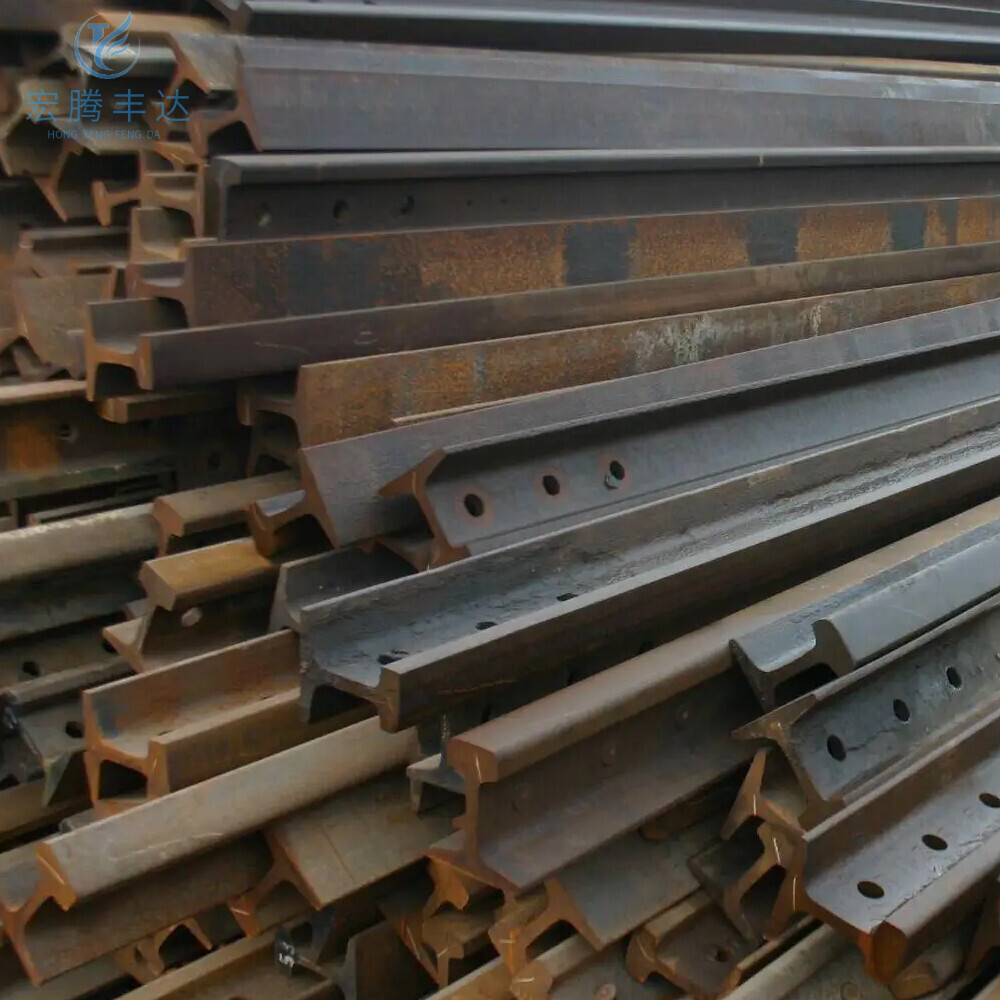

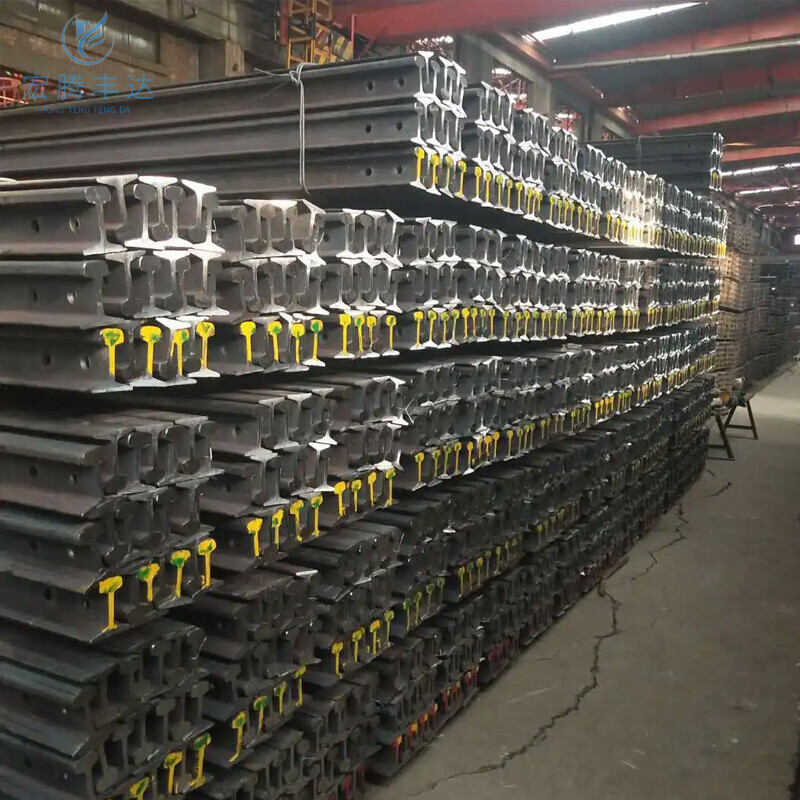

45Mn Steel Rail

Phone：+86 15863795017

WeChat：+86 15863795017

WhatsApp：+86 15863795017

Email：sienna@htfdsteel.com

INQUIRY NOW

PRODUCT DESCRIPTION

Product Name		Steel Rail
Standard:		ASTM GB JIS DIN BIS EN AISI, GB ASTM GB DIN JIS BS
Grade:		U74、U71Mn、PD2、PD3 and BNbRE
Technique::		Hot Rollled
Material		Carbon steel or medium manganese steel l
Certafication		ISO9001-2008;ISO14001:2004
Length		12m-30m or as customer's actual request .
Thickness		3mm - 24mm
Rail Heigth		134-170mm
Head Width		68-73mm
Bottom Width		114-150mm
Surface		Oil,Black, Galvanized, Painted
Place of Origin		Shandong, China
Tolerance		±1%
Application		Railway Rail
Application scenarios（Position）		Bridge Railings / Handrails, Deck Railings / Handrails
Payment Term		T/T or L/C at sight
Price term		FOB,FCA,CIF,CFR,DDU,etc
Delivery Time		15-20 days
Packaging Details		bulk packing or according to customers' request
Advantages		1. Reasonable price with excellent quality2. Abundant stock and prompt delivery3. Rich supply and export experience, 24 Hours sincere service
Name of Commodity	Specificaton		Materials
Light Rail	4kg/m		Q235
	8kg/m
	12kg/m
	15kg/m		Q235/55Q/50Q
	18kg/m
	22kg/m
	24kg/m
	30kg/m
Heavy Rail	38kg/m		U71Mn/U71/45Mn
	43kg/m
	50kg/m
Crane Rail	QU70		U71Mn
	QU80
	QU100
	QU120

China Standard Light Rail (GB11264-89)
Size	Dimension (MM)				Weight	Material	Length
Size	Head Width	Height	Base Width	Web Thickness	KG/M	Material	M/PCS
GB9KG	32.1	63.5	63.5	5.9	8.94	Q235	6-9
GB12KG	38.1	69.85	69.85	7.54	12.2	Q235/55Q	6-12
GB15KG	42.86	79.37	79.37	8.33	15.2	Q235/55Q	6-12
GB22KG	50.8	93.66	93.66	10.72	22.3	Q235/55Q	6-12
GB30KG	60.33	107.95	107.95	12.3	30.1	Q235/55Q	6-12
China Standard Light Rail (YB222-63)
Size	Dimension				Weight	Material	Length
Size	Head Width	Height	Base Width	Web Thickness	KG/M	Material	M/PCS
GB8KG	25	65	54	7	8.42	Q235	6-12
GB18KG	40	90	80	10	18.06	Q235/55Q
GB24KG	51	107	92	10.9	24.46	Q235/55Q
China Standard Heavy Steel Rail (GB2585-2007)
Size	Dimension				Weight	Material	Length
Size	Head Width	Height	Base Width	Web Thickness	KG/M	Material	M/PCS
GB38KG	68	134	114	13	38.733	U71MN/50MN	10-12.5
GB43KG	70	140	114	14.5	44.653	U71MN/50MN	10-12.5
GB50KG	70	152	132	15.5	51.514	U71MN/ U75V	12.5-100
GB60KG	73	176	150	16.5	60.08
GB75KG	75	192	150	20	74.6
China Standard Crane Rail YB/T5055-2014
Size	Dimension				Weight	Material	Length
Size	Head Width	Height	Base Width	Web Thickness	KG/M	Material	M/PCS
QU70	70	120	120	28	52.8	U71Mn/50Mn	12
QU80	80	130	130	32	63.69
QU100	100	150	150	38	88.96
QU120	120	170	170	44	118.1
UIC860 Standard Steel Rail
Size	Dimension				Weight	Material	Length
Size	Head Width	Height	Base Width	Web Thickness	KG/M	Material	M/PCS
UIC54	70	159	140	16	54.43	900A/U71MN	12-25
UIC60	74.3	172	150	16.5	60.21	900A/U71MN	12-25
EN 13674.1 Standard Steel Rails
54E1	72.22	159	140	16	54.77	R260,R350HT, R350LHT	12-25
60E1	72	172	150	16.5	60.21
60E2	72	172	150	16.5	60.03
AREMA Standard Steel Rail
Size	Dimension				Weight	Material	Length
Size	Head Width	Height	Base Width	Web Thickness	KG/M	Material	M/PCS
ASCE25	38.1	69.85	69.85	7.54	12.4	Q235	6-12
ASCE30	42.86	79.38	79.38	8.33	14.88	Q235/55Q
ASCE40	47.62	88.9	88.9	9.92	19.84
ASCE60	60.32	107.95	107.95	12.3	29.76
ASCE75	62.71	122.24	122.24	13.49	37.2	900A/ U71MN	12
ASCE85	65.09	131.76	131.76	14.29	42.17
ASCE90	65.09	142.88	130.18	14.29	44.65
ASCE115	69.06	168.28	139.7	15.88	56.9	SS, 900A	11.89-25
ASCE136	74.61	185.74	152.4	17.46	67.41	SS, 900A	11.89-25
DIN536 Crane Rail
Size	Dimension				Weight	Material	Length
Size	Head Width	Height	Base Width	Web Thickness	KG/M	Material	M/PCS
A45	45	55	125	24	22.1	50MN, U71MN,900A,	12
A55	55	65	150	31	31.8
A65	65	75	175	38	43.1
A75	75	85	200	45	56.2
A100	100	95	200	60	74.3
A120	120	105	220	72	100
A150	150	150	220	80	150.3
JIS E1103/1101 STANDARD
Size	Dimension				Weight	Material	Length
Size	Head Width	Height	Base Width	Base Width	KG/M	Material	M/PCS
JIS 15KG	42.86	79.37	79.37	8.33	15.2	Q235, 55Q	6-11
JIS 22KG	50.8	93.66	93.66	10.72	22.3
JIS 30A	60.33	107.95	107.95	12.3	30.1
JIS 37A	62.71	122.24	122.24	13.49	37.2	50MN, U71MN,900A	10-12
JIS 50N	65	153	127	15	50.4
CR73	100	135	140	32	73.3
CR100	120	150	155	39	100.2
