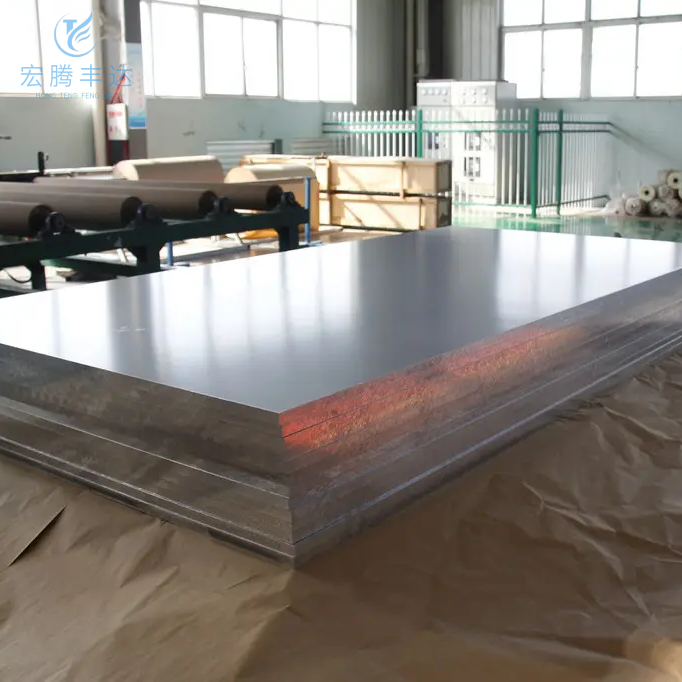

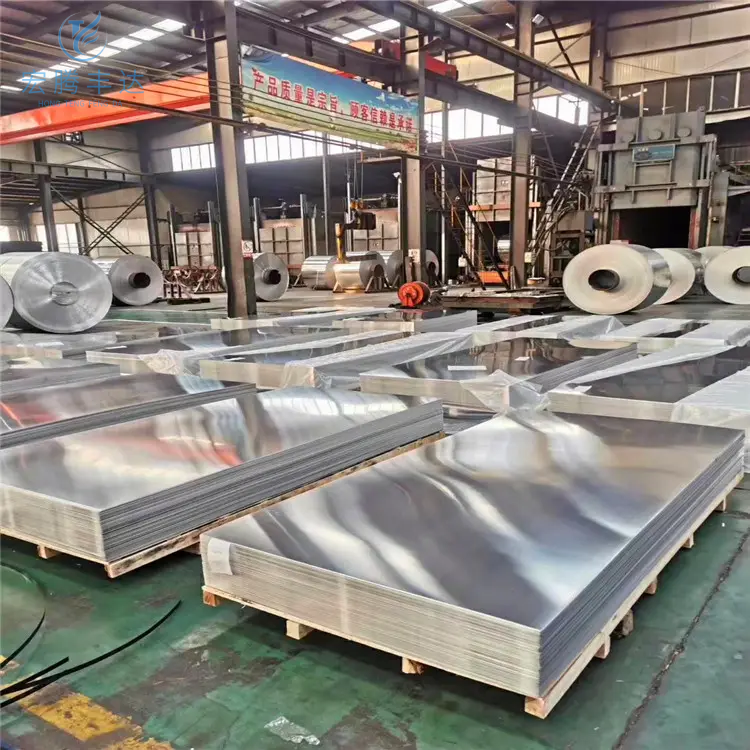

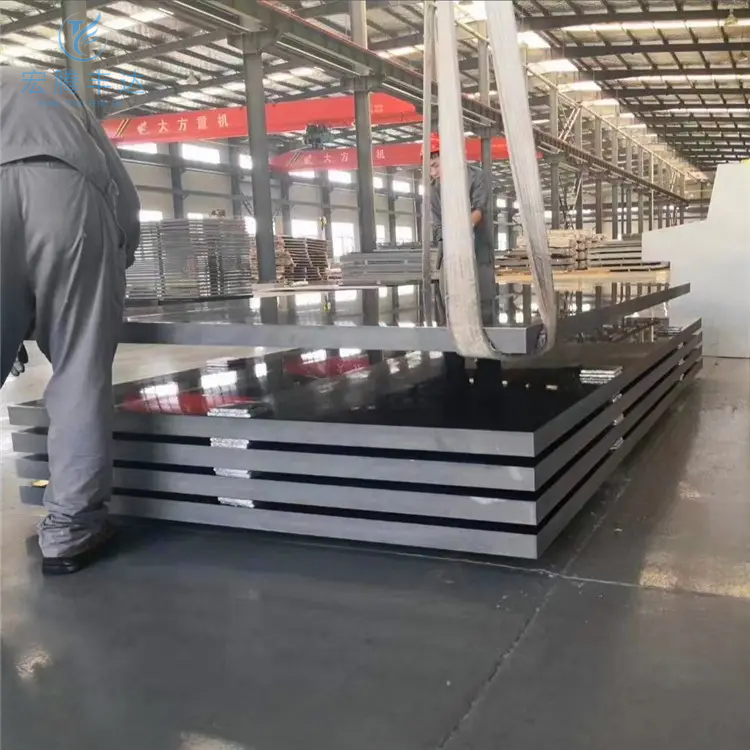

1070 Aluminum Plate
Phone：+86 15863795017
WeChat：+86 15863795017
WhatsApp：+86 15863795017
Email：sienna@htfdsteel.com
INQUIRY NOW
CONTACT US
PRODUCT DESCRIPTION

1070 aluminum plate is made of a pure aluminium alloy. It is a wrought alloy with a high corrosion resistance and an excellent brazing ability. 1070 aluminium alloy has aluminium, iron, silicon, zinc, vanadium, copper, titanium, magnesium, and manganese as minor elements. Due to the high purity of 1070 aluminum alloy, its plasticity and ductility are good, and products can be made through deep drawing, drawing and other forming processes. 1070 aluminum alloy has good corrosion resistance and is especially suitable for components, devices and structures working in hot and humid environments, such as chemical equipment, marine equipment, etc. Lastly, 1070 aluminum plate is widely used in electronics, electrical appliances, automobiles, construction, aviation and other fields.


Product Parameters

Width

20-3000mm or Customized

Thickness

0.1-120mm or Customized

Length

100-12000mm or Customized

Certificate

ISO, SGS, BV

Standard

JIS, AISI, ASTM, GB, DIN, EN, etc.

Brand

1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc.

3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc.

5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5754, 5A05, etc.

6000 Series: 6061, 6063, 6082, 6A02, etc.

7000 Series: 7050, 7475, 7075, etc.

8000 Series: 8A06, 8011, 8090, etc.

Surface

Coating, Embossing, Drawing, Polishing, Anodizing, etc.

OEM Service

Punching, Cutting Special Size, Making Flat Surface, Surface Treatment, etc.

Delivery Time

Received 30%, After deposit 7-15 working day

Application

Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware And Other Fields, etc.

Sample

Free Offers Sample

Packaging

Strapping, plastic bag, film, wooden pallet Standard seaworthy export packing or according to customer requirement


Chemical Composition

Alloy

Si

Fe

Cu

Mn

Mg

Cr

Zn

Ti

Others:

Each

Others:

Total

Al: Min.

1050

0.25

0.40

0.05

0.05

0.05

-

0.05

0.03

0.03

-

99.50

1060

0.25

0.35

0.05

0.03

0.03

-

0.05

0.03

0.03

-

99.60

1070

0.20

0.25

0.04

0.03

0.03

-

0.04

0.03

0.05

-

99.70

1100

0.95 Si Fee

0.05~0.20

0.05

-

-

0.1

-

0.05

0.15

99.0

2014

0.5~1.2

0.7

3.9~5.0

0.4~1.2

0.2~0.8

0.10

0.25

0.15

0.05

0.15

Margin

2017

0.2~0.8

0.7

3.5~4.5

0.4~1.0

0.4~0.8

0.10

0.25

0.15

0.05

0.15

91.5 - 95.5

2024

0.50

0.50

3.8~4.9

0.3~0.9

1.2~1.8

0.10

0.25

0.15

0.05

0.15

Margin

3003

0.60

0.70

0.05~0.20

1.0~1.5

-

-

0.10

-

0.05

0.15

Margin

3A21

0.60

0.70

0.20

1.0-1.6

0.05

-

0.15

0.1-0.2

-

-

Margin

3004

0.30

0.70

0.25

1.0~1.5

0.8~1.3

-

0.25

-

0.05

0.15

Margin

3005

0.60

0.70

0.30

1.0~1.5

0.2~0.6

0.10

0.25

0.10

0.05

0.15

Margin

3105

0.60

0.70

0.30

0.3~0.8

0.2~0.8

0.20

0.40

0.10

0.05

0.15

Margin

5005

0.30

0.70

0.20

0.20

0.5~1.1

0.1

0.25

-

0.05

0.15

Margin

5052

0.25

0.40

0.10

0.10

2.2~2.8

0.15~0.35

0.10

-

0.05

0.15

Margin

5754

0.40

0.40

0.10

0.50

2.6~3.6

0.30

0.20

0.15

0.05

0.15

Margin

5A05

0.50

0.50

0.10

0.3-0.6

4.8-5.5

-

0.20

-

0.05

0.05

Margin

5083

0.40

0.40

0.10

0.4~1.0

4.0~4.9

0.05~0.25

0.25

0.15

0.05

0.15

Margin

6061

0.40~0.8

0.70

0.15~0.4

0.15

0.8~1.2

0.04~0.35

0.25

0.15

0.05

0.15

Margin

6082

0.70~1.3

0.50

0.10

0.4~1.0

0.6~1.2

0.25

0.20

0.10

0.05

0.15

Margin

7075

0.40

0.50

1.2~2.0

0.30

2.1~2.9

0.18~0.28

5.1~6.1

0.20

0.05

0.15

Margin


Mechanical Properties

Tensile Strength

(MPa)

Elongation Rate

(%)

Yield Strength

(MPa)

≥75

≥ 4.5

≥35


Physical Performance

Density

Melting Point

Modulus of Elasticity

Thermal Conductivity

Thermal Expansion

2.7 Kg/m³

640 °C

68GPa

230 w/m K

23×10-6/K


Annealing State

Brand

Annealing State

1xxx: 1050, 1050A, 1060, 1100

O, H12, H14, H16, H18, H22, H24, H26, H28, H111

3xxx: 3003, 3004, 3005, 3105

5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454

O, H22, H24, H26, H28, H32, H34, H36, H38, H111

6xxx: 6061, 6082

T4, T6, T451, T651

2xxx: 2024

T3, T351, T4

7xxx: 7075

T6, T651


Scope of Application

Aluminum Uses And Application Area

Food Packaging

Beverage can ends, cans, bottle caps, etc.

Building

Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc.

Transportation

Auto parts, passenger car bodies, aviation ships and air cargo containers.

Electronic Equipment

Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc.

Consumer Goods

Umbrellas, cooking utensils, sports equipment, etc

Other

Military, color coated aluminum plate, etc
