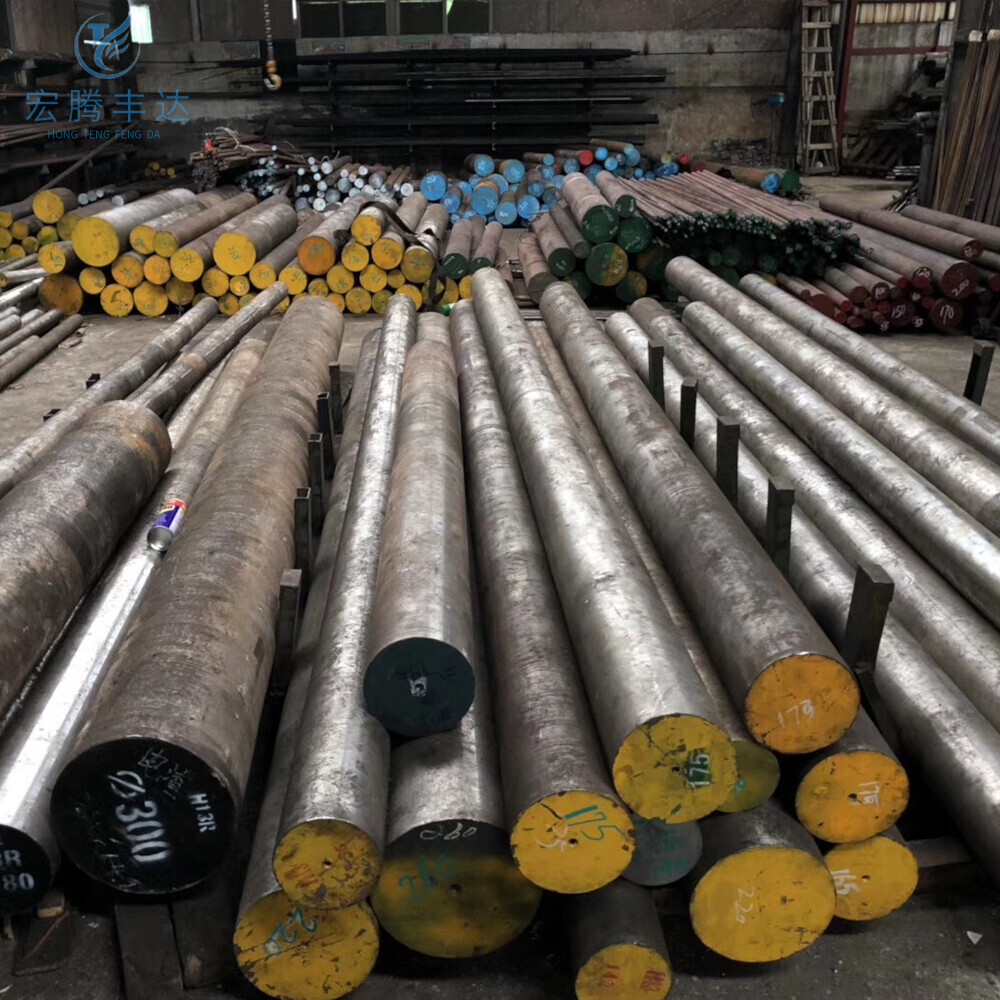

A572/S355JR Carbon Steel Bar Description
A572 steel bars are lightweight, but have good strength, ductility and workability, making them ideal for structural applications. These characteristics make the A572 relatively simple to shape into different structures, while maintaining the ability to withstand large stresses and loads.
Product Parameters
Product Name | A572/S355JR Carbon Steel Bar |
Standard | EN/DIN/JIS/ASTM/BS/ASME/AISI, etc. |
Common Round Bar Specifications | 3.0-50.8 mm, Over 50.8-300mm |
Flat Steel Common Specifications | 6.35x12.7mm, 6.35x25.4mm, 12.7x25.4mm |
Hexagon Bar Common Specifications | AF5.8mm-17mm |
Square Bar Common Specifications | AF2mm-14mm, AF6.35mm, 9.5mm, 12.7mm, 15.98mm, 19.0mm, 25.4mm |
Length | 1-6meters, Size Accept Custom |
Diameter(mm) | Hot Rolling Round Bar | 25-600 | Cold Rolling Square Bar | 6-50.8 |
Hot Rolling Square Bar | 21-54 | Cold Rolling Hexagon Bar | 9.5-65 |
Cold Rolling Round bar | 6-101.6 | Forged Rebar | 200-1000 |
Surface Process | Bright, Polished, Black |
Other Services | Machining(cnc), Centerless Grinding(cg), Heat Treatment, Annealing, Pickling, Polishing, Rolling, Forging, Cutting, Bending, Small Machining, etc. |
Chemical Composition
A572 | C | Mn | P | S | Si |
Grade42 | 0.21 | 1.35 | 0.03 | 0.03 | 0.15~0.4 |
Grade50 | 0.23 | 1.35 | 0.03 | 0.03 | 0.15~0.4 |
Grade60 | 0.26 | 1.35 | 0.03 | 0.03 | 0.40 |
Grade65 | 0.23~0.26 | 1.35~1.65 | 0.03 | 0.03 | 0.40 |
Mechanical Properties
A572 | Yield Strength(Ksi) | Tensile Strength(Ksi) | Elongation % 8inches |
Grade42 | 42 | 60 | 20 |
Grade50 | 50 | 65 | 18 |
Grade60 | 60 | 75 | 16 |
Grade65 | 65 | 80 | 15 |
Physical Performance
Physical Performance | Metric | Imperial |
Density | 7.80g/cc | 0.282 lb/in³ |
Scope of Application
ASTM A572 carbon steel low-alloy steel is widely used as bridge panels, support plates, mechanical mounting plates, etc. for construction equipment, transmission towers, racks and other equipment.
Equivalent Material
EU | German Standard | Japanese Standard | French Standard | British Standard | Canada | Italy | Spain | National Standard | International | Portugal | India |
EN | DIN,WNr | JIS | AFNOR | BS | HG | UNI | UNE | GB | ISO | NP | IS |
S355JR | St52-3 | SM490A | E36-2 | 50B | 350W | Fe510B | AE355B | Q345B | E355C | FE510-B | IS961 |
美国 | 日本 | 德国 | 英国 |
| 法国 | 意大利 | 西班牙 | 瑞士 | 中国 |
AISI/SAE | JIS | W‐nr. | DIN | BS | EN | AFNOR | UNI | UNE | SS | GB |
A570.36 | STKM 12A | 1.0038 | RSt.37‐2 | 4360 | ‐ | E 24‐2 | ‐ | ‐ | 1311 | 15 |
- | STKM 12C | - | - | 40 C | - | Ne | - | - | - | - |
1015 | ‐ | 1.0401 | C15 | 080M15 | ‐ | CC12 | C15, C16 | F.111 | 1350 | 15 |
1020 | ‐ | 1.0402 | C22 | 050A20 | 2C | CC20 | C20, C21 | F.112 | 1450 | 20 |
1213 | SUM22 | 1.0715 | 9SMn28 | 230M07 | 1A | S250 | CF9SMn28 | F.2111 | 1912 | Y15 |
11SMn28 |
12L13 | SUM22L | 1.0718 | 9SMnPb28 | ‐ | ‐ | S250Pb | CF9SMnPb28 | 11SMnPb28 | 1914 | ‐ |
‐ | ‐ | 1.0722 | 10SPb20 | ‐ | ‐ | 10PbF2 | CF10Pb20 | 10SPb20 | ‐ | ‐ |
1215 | ‐ | 1.0736 | 9SMn36 | 240M07 | 1B | S300 | CF9SMn36 | 12SMn35 | ‐ | Y13 |
12L14 | ‐ | 1.0737 | 9SMnPb36 | ‐ | ‐ | S300PB | CF9SMnPb36 | 12SMnP35 | 1926 | ‐ |
1015 | S15C | 1.1141 | Ck15 | 080M15 | 32C | XC12 | C16 | C15K | 1370 | 15 |
1025 | S25C | 1.1158 | Ck25 | ‐ | ‐ | ‐ | ‐ | ‐ | ‐ | 25 |
A572-60 | ‐ | 1.890 | StE380 | 4360 55 | ‐ | ‐ | FeE390KG | ‐ | 2145 | ‐ |
1035 | ‐ | 1.0501 | C35 | 060A35 | ‐ | CC35 | C35 | F.113 | 1550 | 35 |
1045 | ‐ | 1.0503 | C45 | 080M46 | ‐ | CC45 | C45 | F.114 | 1650 | 45 |
1140 | ‐ | 1.0726 | 35S20 | 212M36 | 8M | 35MF4 | ‐ | F210G | 1957 | ‐ |
1039 | ‐ | 1.1157 | 40Mn4 | 150M36 | 15 | 35M5 | ‐ | ‐ | ‐ | 40Mn |
1335 | SMn438(H) | 1.1167 | 36Mn5 | ‐ | ‐ | 40M5 | ‐ | 36Mn5 | 2120 | 35Mn2 |
1330 | SCMn1 | 1.1170 | 28Mn6 | 150M28 | 14A | 20M5 | C28Mn | ‐ | ‐ | 30Mn |
1035 | S35C | 1.1183 | Cf35 | 060A35 | ‐ | XC38TS | C36 | ‐ | 1572 | 35Mn |
1045 | S45C | 1.1191 | Ck45 | 080M46 | ‐ | XC42 | C45 | C45K | 1672 | Ck45 |
1050 | S50C | 1.1213 | Cf53 | 060A52 | ‐ | XC48TS | C53 | ‐ | 1674 | 50 |
1055 | ‐ | 1.0535 | C55 | 070M55 | 9 | ‐ | C55 | ‐ | 1655 | 55 |
1060 | ‐ | 1.0601 | C60 | 080A62 | 43D | CC55 | C60 | ‐ | ‐ | 60 |
1055 | S55C | 1.1203 | Ck55 | 070M55 | ‐ | XC55 | C50 | C55K | ‐ | 55 |
1060 | S58C | 1.1221 | Ck60 | 080A62 | 43D | XC60 | C60 | ‐ | 1678 | 60Mn |
1095 | ‐ | 1.1274 | Ck101 | 060A96 | ‐ | XC100 | ‐ | F.5117 | 1870 | ‐ |
W1 | SK3 | 1.1545 | C105W1 | BW1A | ‐ | Y105 | C36KU | F.5118 | 1880 | ‐ |
W210 | SUP4 | 1.1545 | C105W1 | BW2 | ‐ | Y120 | C120KU | F.515 | 2900 | ‐ |
